Pressure Control

The Titan equipment line.

One of the largest frac inventories in the nation, backed by full sales, rental, and service support — engineered for the operators who run the basin.

Frac Systems Wellheads & Drilling Hoses & Connections Automation Flowback
01 / Frac Systems

Frac Systems

From single-well frac trees to multi-well zipper and FastLine manifolds, Titan builds and services the high-pressure equipment that runs modern frac operations.

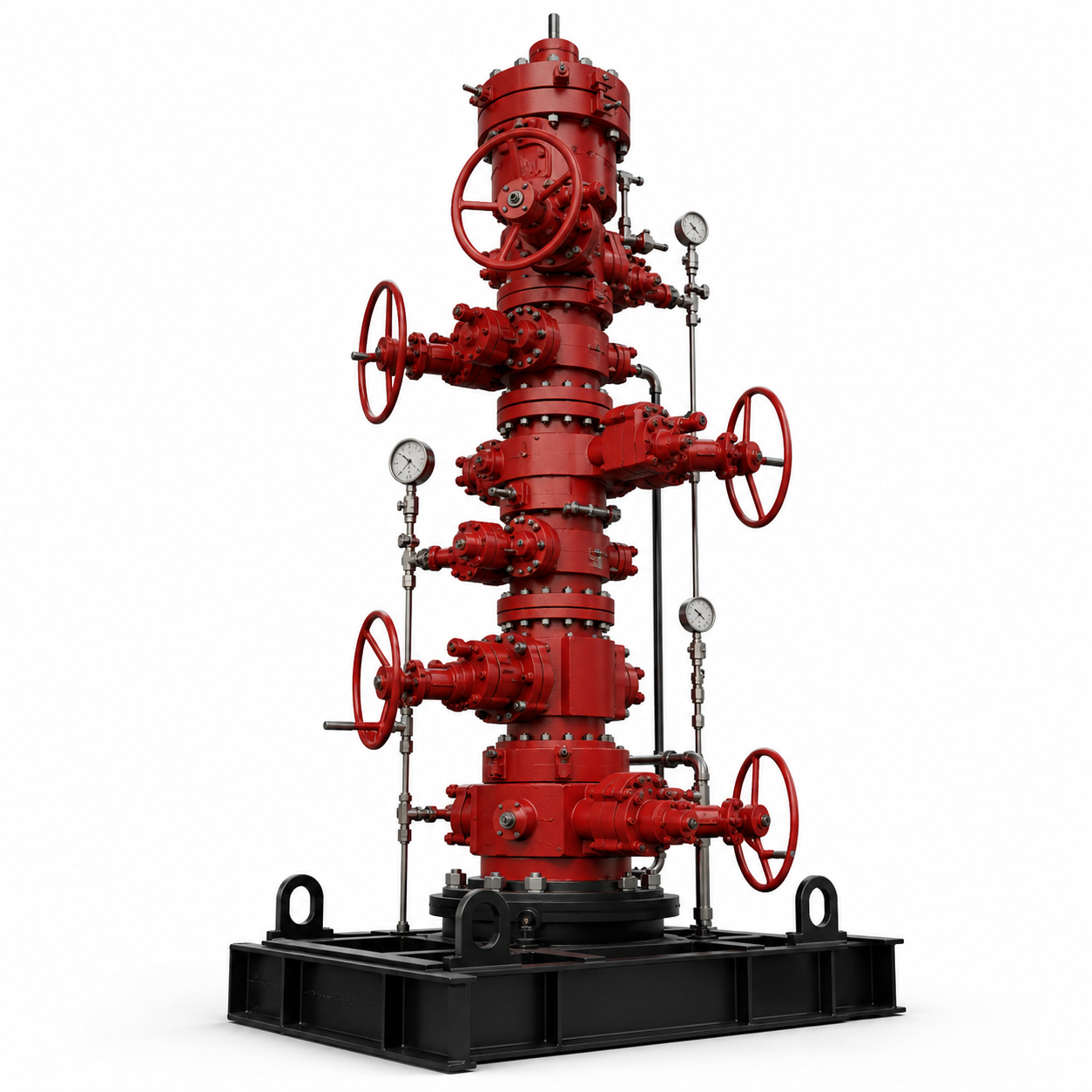

Frac Stacks

High-pressure frac stacks built for multi-well pad operations and single-well sites.

  • Pressure Rating10K & 15K
  • Valve ConfigurationsServiceless · Traditional · Hydraulic · Manual
  • Bore Sizes1-13/16" through 7-1/16"
  • Material ClassAPI 6A DD/EE · Temp Class P to U
  • Special Features7-1/16" large bore valves with "EZ Torque" Ball Screws
Frac Stacks

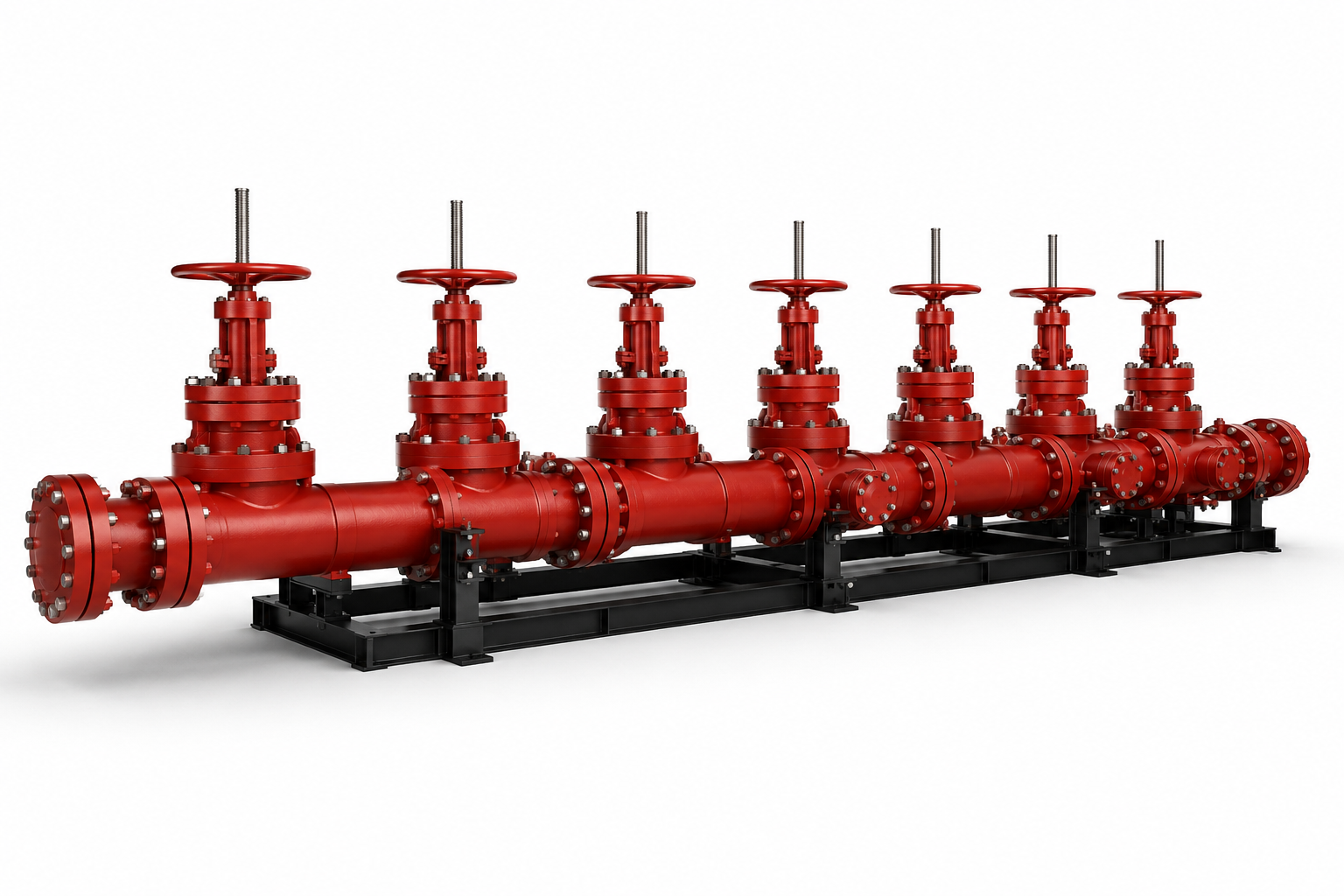

Zipper Manifolds

Multi-well zipper manifolds for streamlined transitions between wells on a pad.

  • Pressure Rating10K & 15K
  • Valve ConfigurationsServiceless · Traditional · Hydraulic · Manual
  • Designed ForMulti-well pad operations
  • Compatible WithFrac stacks · FastLine systems · Automation packages
Zipper Manifolds

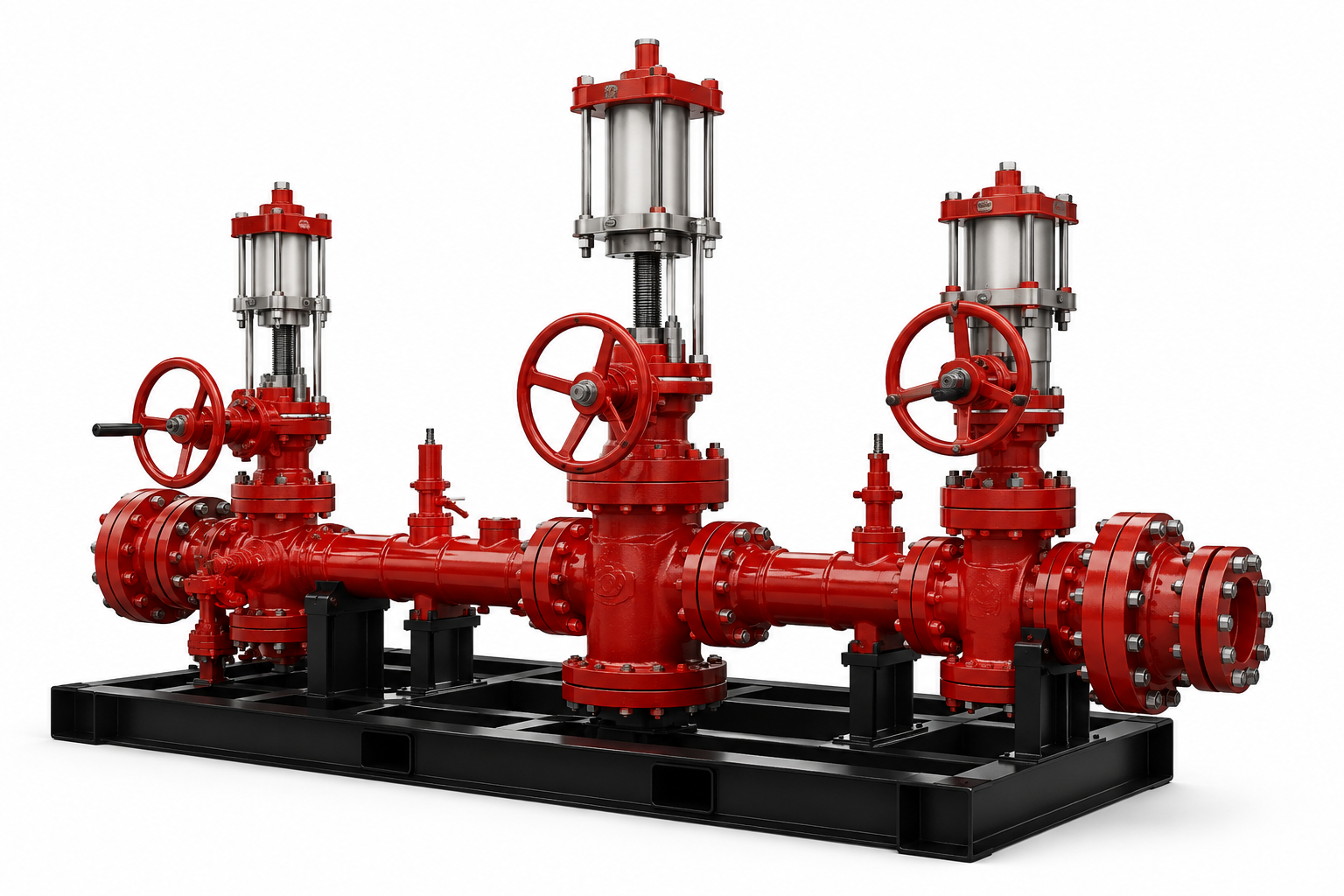

FastLine Manifolds

Single full-bore flow path for fracking multi-well pads — eliminates traditional flow iron and dramatically reduces connection points.

  • Bore Size7-1/16"
  • Pressure Rating10K & 15K configurations
  • Key BenefitAllows for continuous pumping
  • EliminatesFlow iron · Pipe restraints · Unnecessary leak paths
  • Valve Actuation"EZ Torque" Ball Screws or pneumatic actuators
FastLine Manifolds

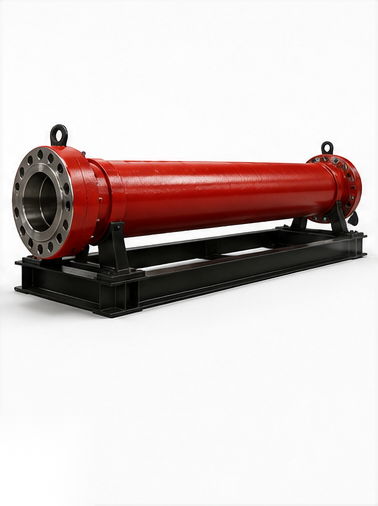

FastLine Remote Lines

7-1/16" API remote lines designed to integrate with our complete FastLine system.

  • Specification7-1/16" API
  • Compatible WithFrac stacks · Zipper manifolds · FastLine manifolds
  • Designed ForHigh-volume, multi-well pad operations
FastLine Remote Lines
02 / Wellheads & Drilling

Wellheads & Drilling Equipment

Titan sells, installs and services most types of wellhead products. From conventional wellheads to engineered systems that save rig time, our field and service personnel are available 24 hours a day.

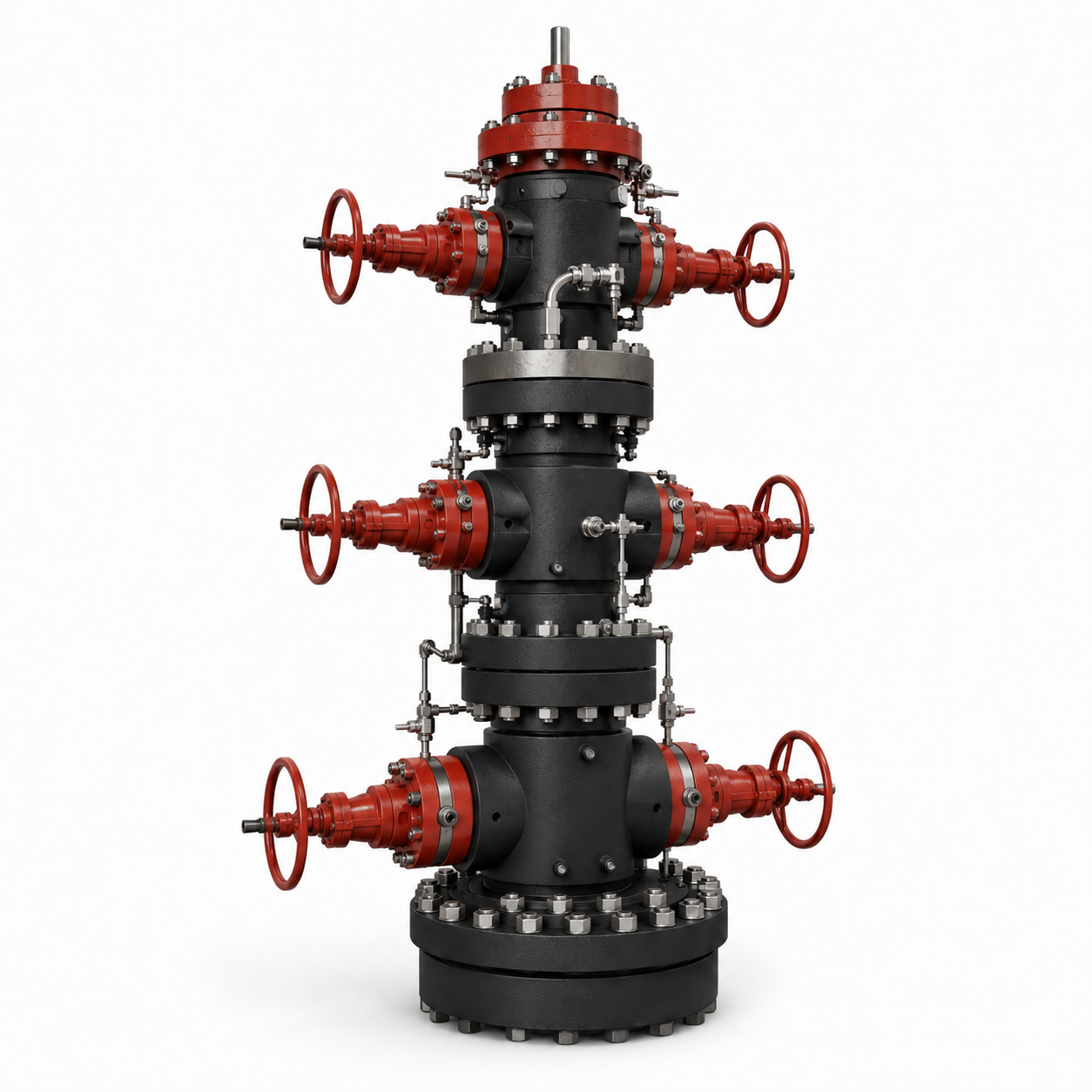

Wellheads & Tubing Heads

Complete wellhead solutions including conventional systems, multi-bowl wellheads, and a full line of tubing heads, hangers, seals, and bushings.

  • Casing HangersSW-22 · SW-29 · SW-21P
  • Tubing HangersTC1B · TC1A · TC1A-EN · TC1W
  • Secondary SealsSWI-PE · SWI-HP-PE
  • BushingSWI-O-2/4-0
  • Companion Flanges1-13/16" through 7-1/16" · 2,000–15,000 PSI · Blind, weld-neck, 410 SS options
Wellheads & Tubing Heads

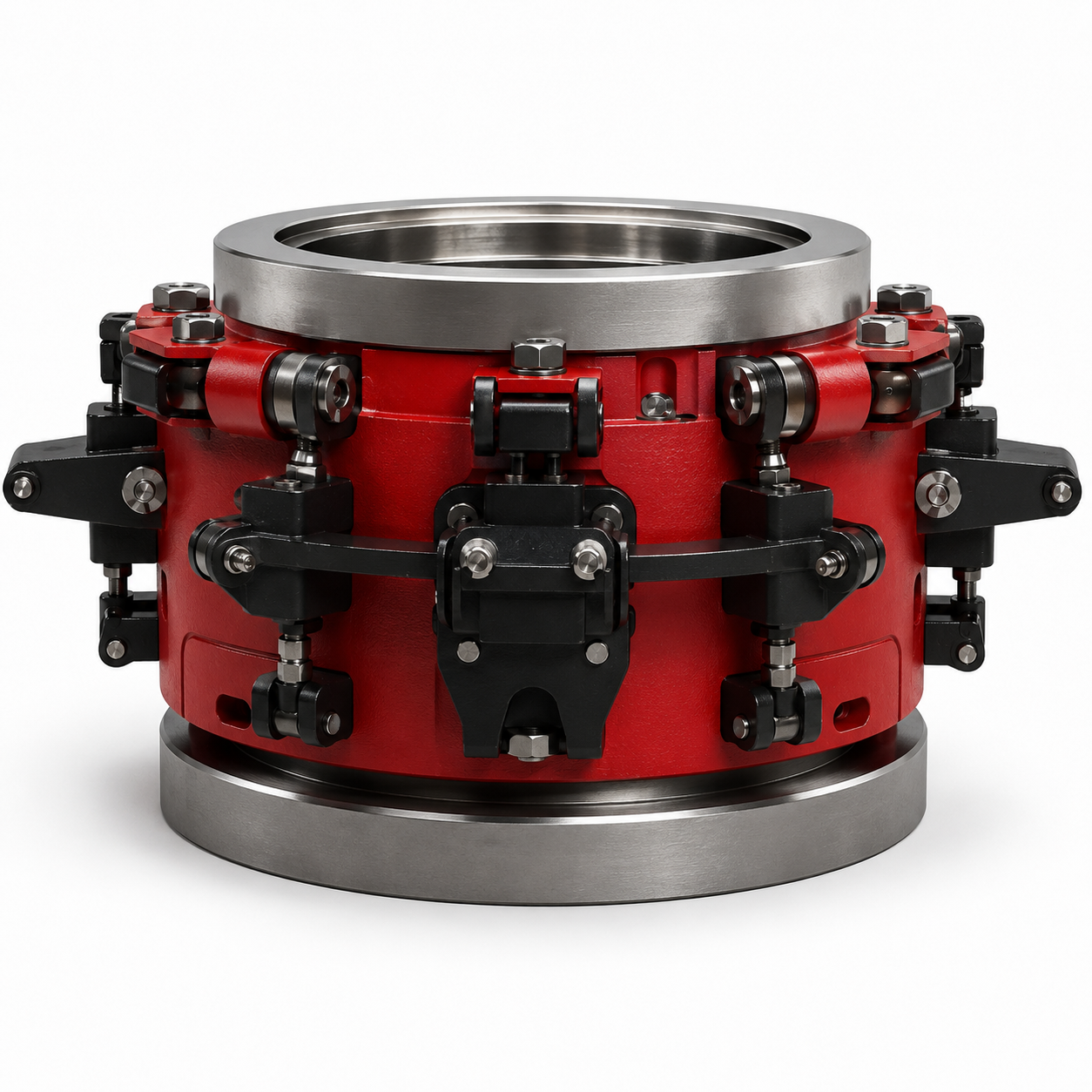

QuickLock BOP Adapter

Reduces cellar exposure and rig time while interfacing seamlessly with our offline cementing equipment.

  • Time Savings2–3 hours of rig time per connection
  • SafetyLess time in the cellar · Reduced personnel exposure to suspended loads
  • OperationsNo hydraulic torque tools required · Low-profile quick connect abandonment cap
  • IntegrationInterfaces with offline cementing adapter
QuickLock BOP Adapter

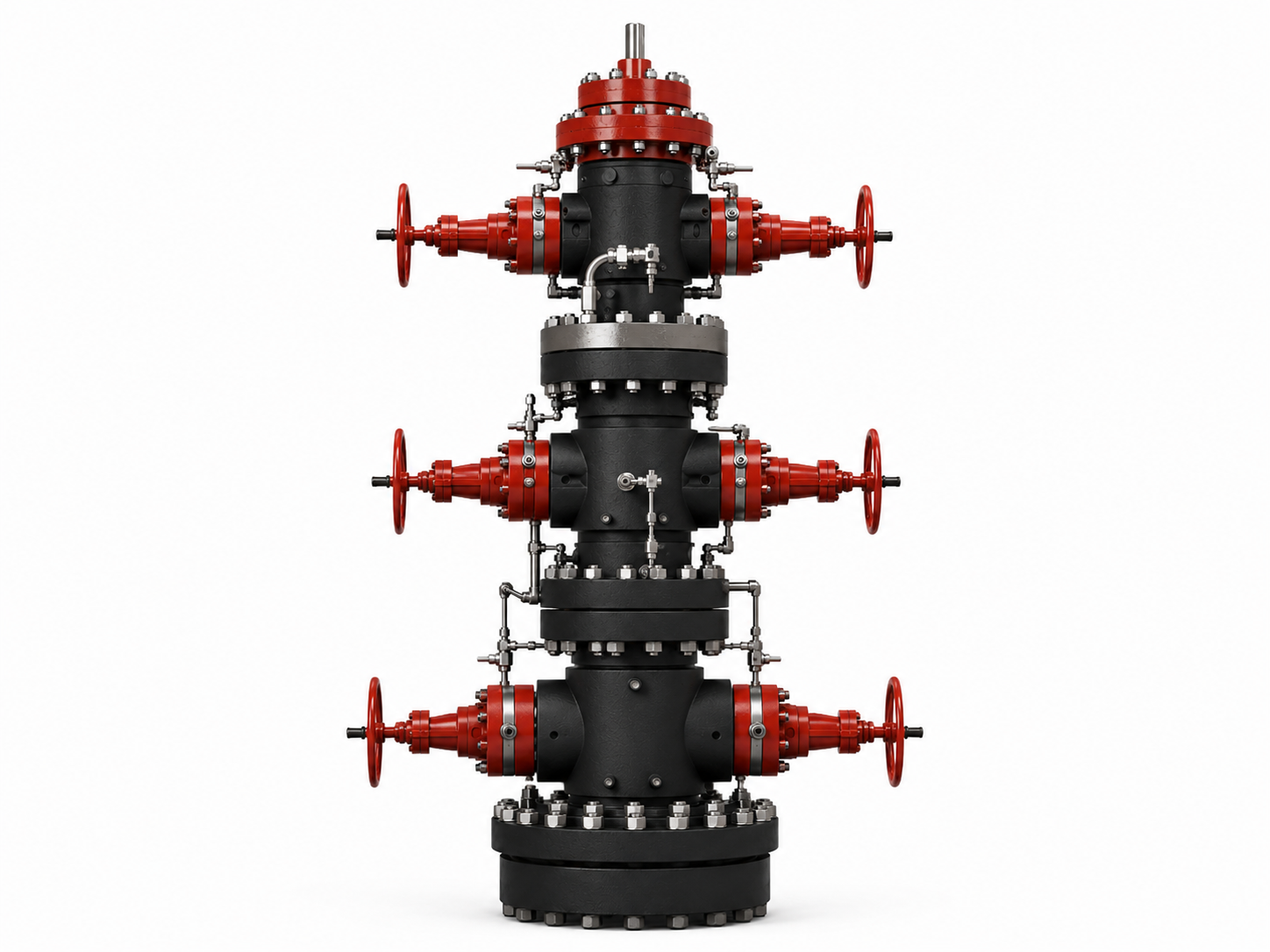

QuickSet Wellhead

Pre-assembled and pretested wellhead system — saves rig time by allowing installation on the surface casing without welding.

  • InstallationFully assembled and pretested · No welding required on surface casing
  • Landing MandrelEasily installed through the rotary floor
  • OrientationWellhead can be swiveled after being set, then locked in place
  • CompatibilityOffline cementing for batch drilling operations
  • SealingSame field-proven design and low profile as Titan's Multi-Bowl Wellhead
QuickSet Wellhead

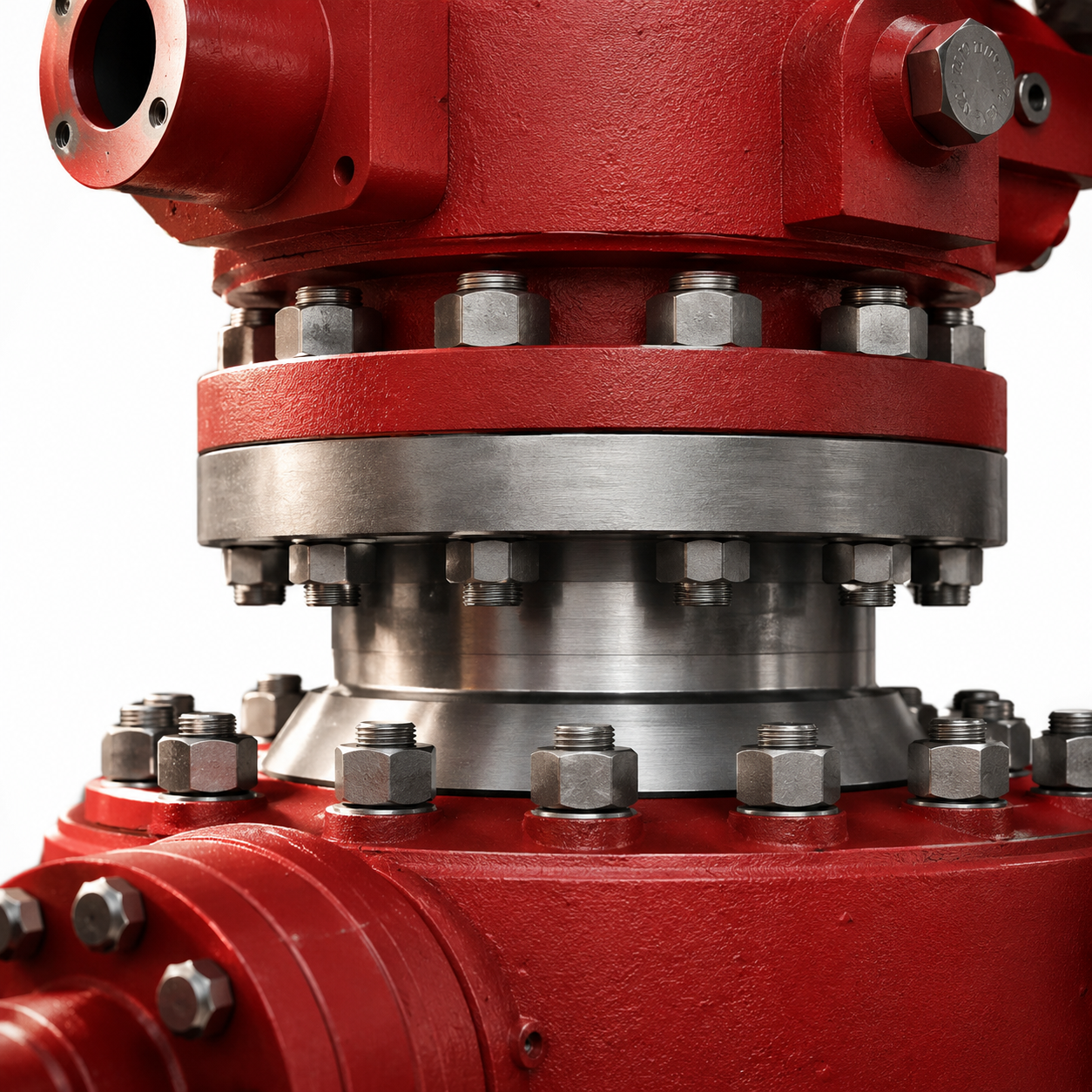

Multi-Bowl Wellhead

Hang multiple casing strings in a single wellhead without breaking the BOP — saves installation time, increases safety, reduces footprint.

  • Casing HeadStandard off-the-shelf
  • Pack-offSingle packoff for multiple casing strings
  • Bowl ProfileC-29 — accepts standard off-the-shelf slips
  • Upper SectionRemovable for flexibility and efficiency
  • CompatibilityTitan BOP Quick Connect · QuickSet Casing Head · Offline Cement systems
Multi-Bowl Wellhead

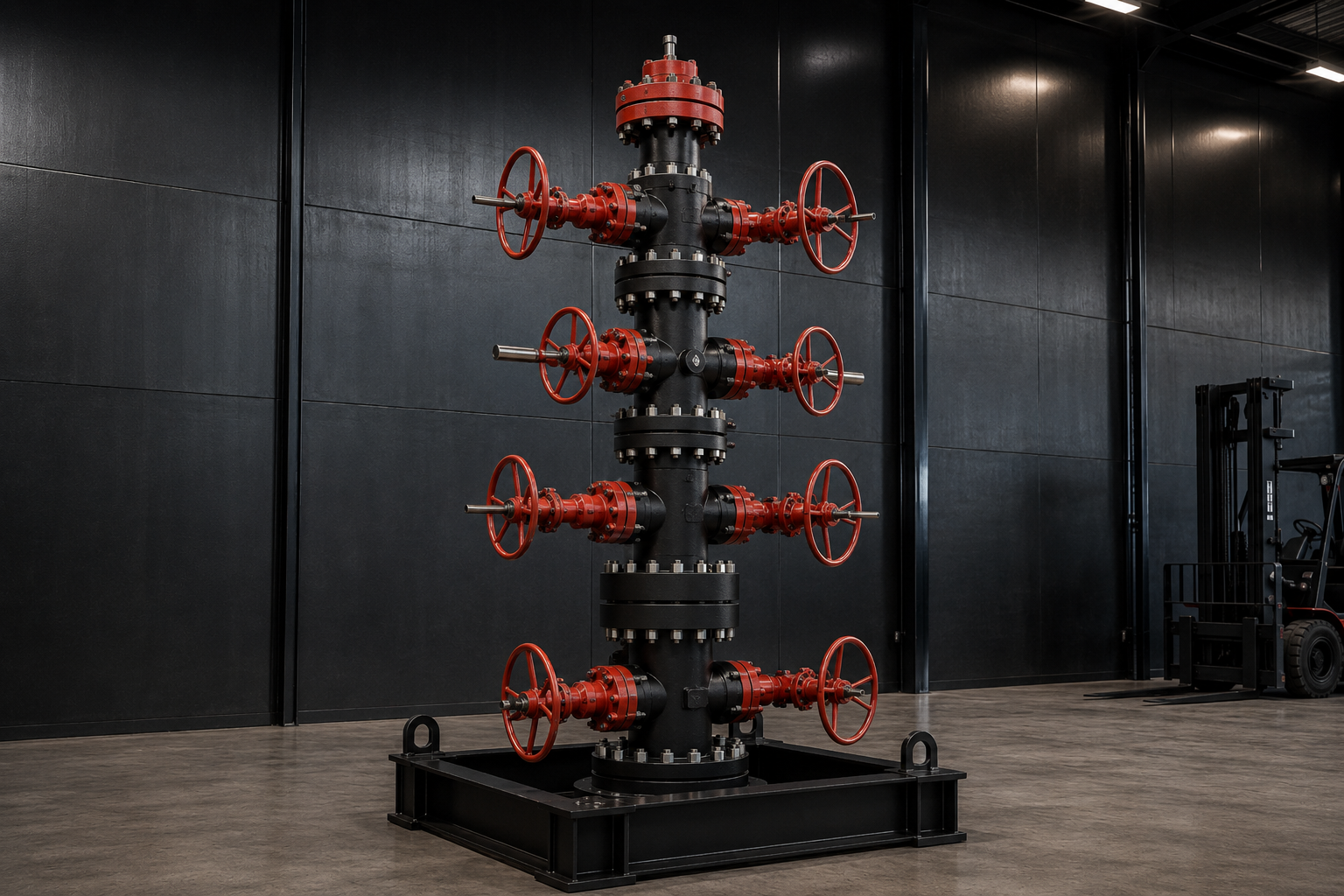

Production Trees

Full range of production trees — manual or actuated, in every standard size and material class.

  • Pressure Rating3,000 – 15,000 PSI
  • Gate ValvesAPI 6A monogrammed
  • ActuationManual · Hydraulic · Pneumatic · Diaphragm actuators
  • Material ClassesAA · DD · EE · FF
  • SizesAll standard production tree sizes
Production Trees

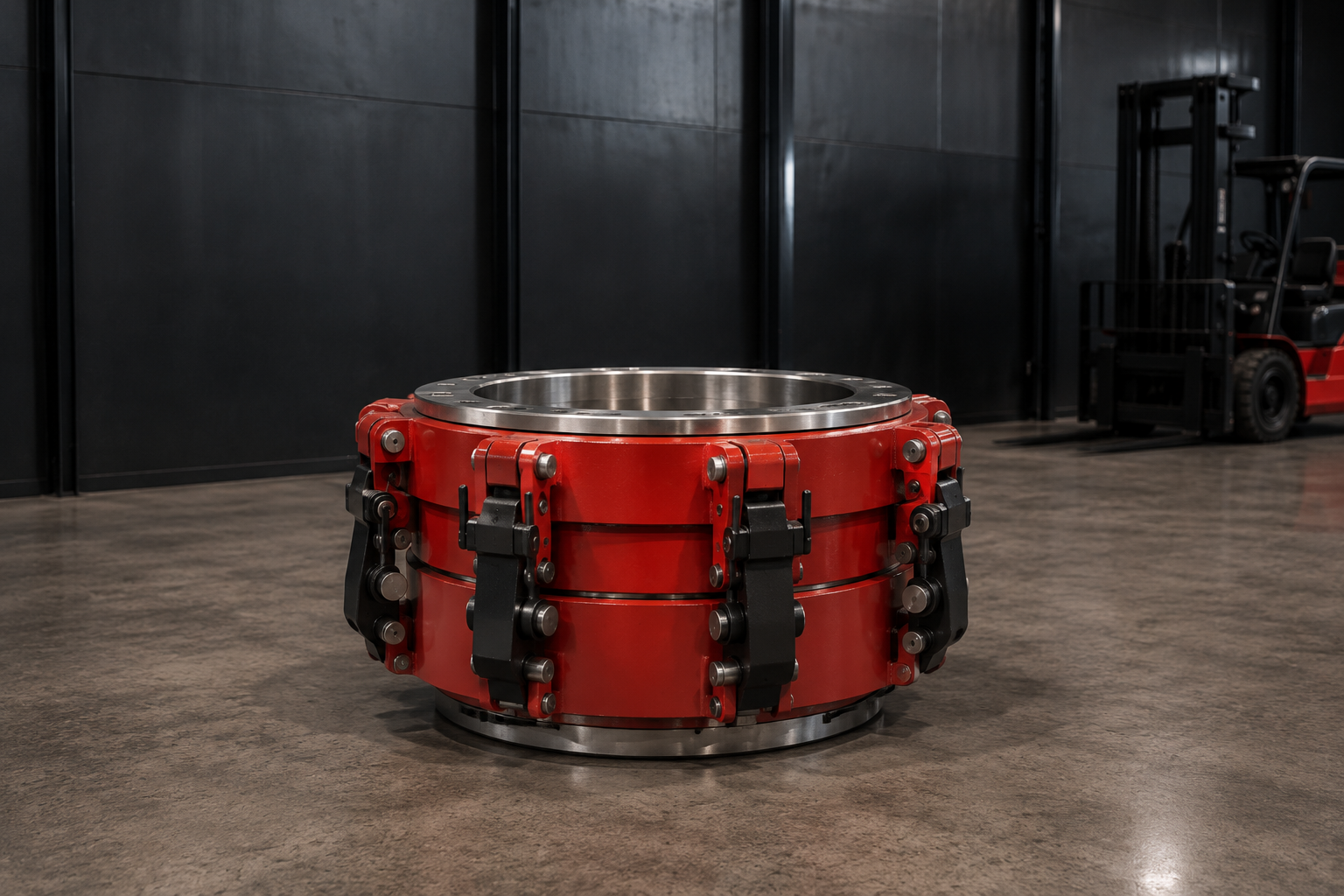

Offline Cementing

Quick swap from drilling to cementing without breaking the BOP — purpose-built for multi-well pads and batch drilling operations.

  • SystemBOP QC Offline Cementing — adapts directly to Titan's BOP Quick Connect
  • InstallationAdapter installed into lower BOP QC, held in place with clamp ring
  • ToolsNo special tools required · Clamp ring installs in minutes
  • Casing SizesAll standard intermediate and production casing sizes
Offline Cementing

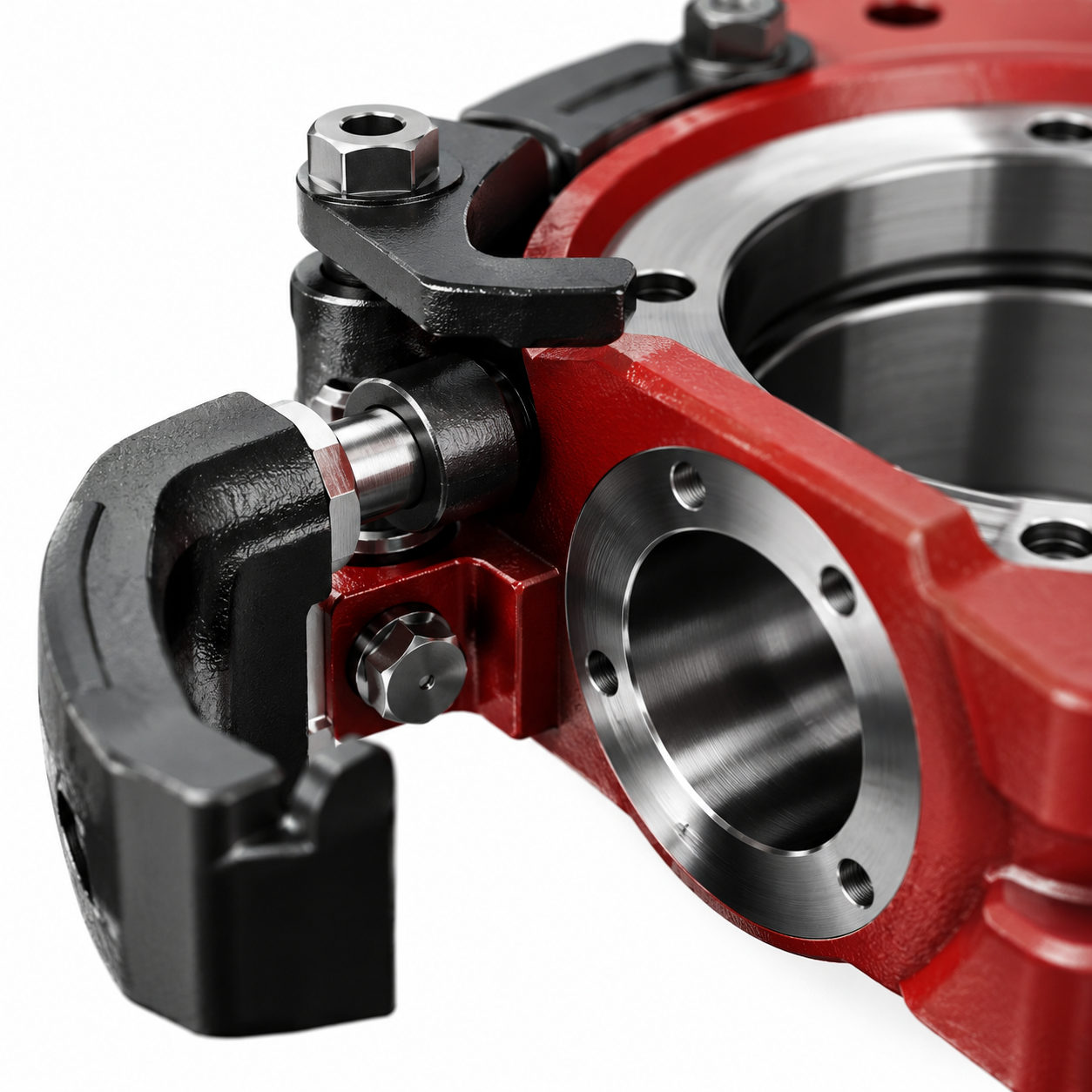

Wellhead Components

Complete line of conventional wellhead components — chokes, tubing head adapters, tree caps, and accessories.

  • ChokesPositive & adjustable · Flanged or threaded ends · 1-13/16" – 4-1/16" bore · 2,000–15,000 PSI
  • Tubing Head AdaptersB-1 · B2P · A5P-EN · BO-2
  • Caps & ConnectionsBHTA tree caps · Tees · Crosses
  • Flange Sizes2-1/16" through 7-1/16" · 2,000–15,000 PSI · 410 stainless available
Wellhead Components
03 / Hoses & Connections

High-Pressure Flex Hoses & Connections

High-pressure flex hoses, couplings, and end connections — the connective tissue between Titan equipment on every frac and pressure-control job.

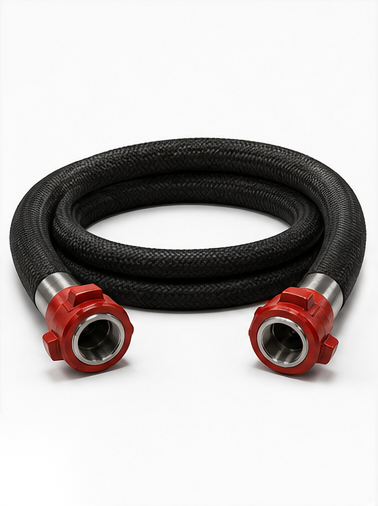

High-Pressure Flex Hoses

High-pressure flex hoses for frac operations and pressure-control applications.

  • Inner Diameter2" & 2.5"
  • Pressure Rating15K
High-Pressure Flex Hoses

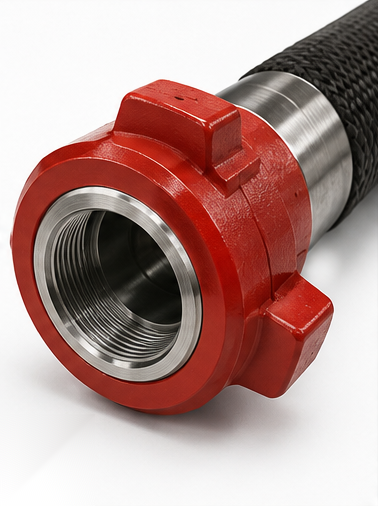

Couplings

Bonded couplings designed for high-pressure flex hose applications.

  • Size3"
  • ConstructionBonded
Couplings

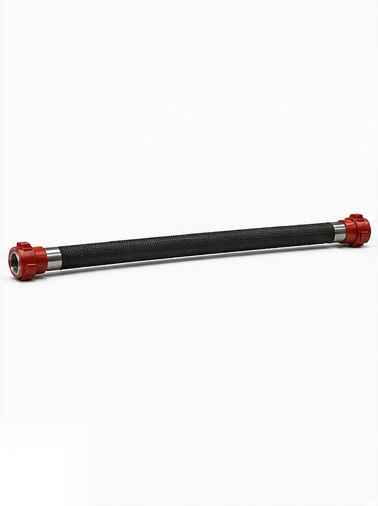

End Connections

Multiple end connection options to integrate with any pressure-control system.

  • Hammer Union1502
  • FlangeStandard configurations
  • Titan ClampTitan-specific connection
End Connections
04 / Automation

Automation

Automation that integrates across the Titan product line — designed to reduce operator exposure, increase consistency, and keep operations moving safely.

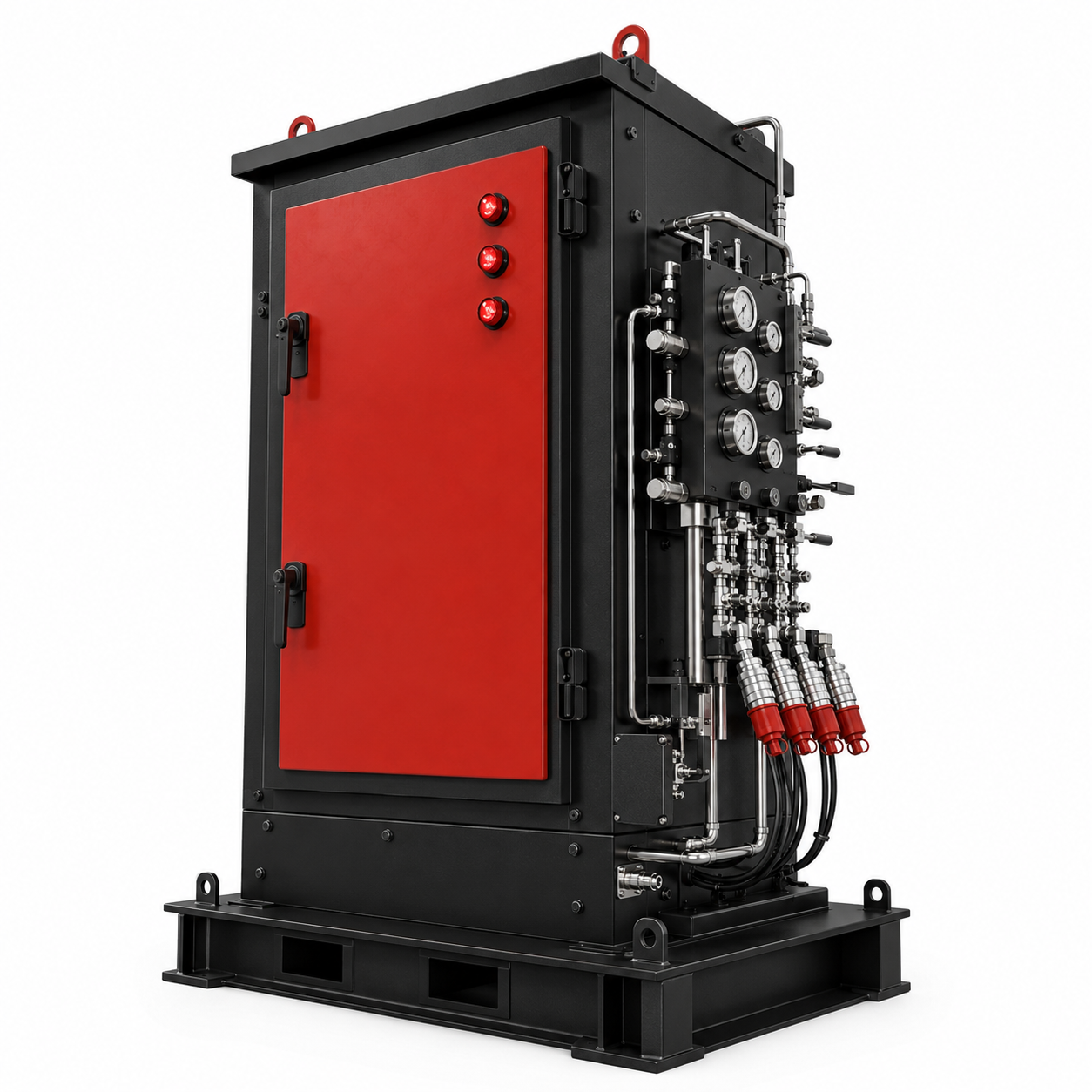

Frac Automation

Engineered to work seamlessly with our frac stacks, zipper manifolds, and FastLine manifolds.

  • Compatible WithFrac stacks · Zipper manifolds · FastLine manifolds
  • ApplicationHigh-pressure frac operations
  • Designed ForReducing operator exposure on location
Frac Automation
05 / Flowback

Flowback

Frac-only flowback equipment and services. Built for the well cleanup and flow-management work that follows every frac job.

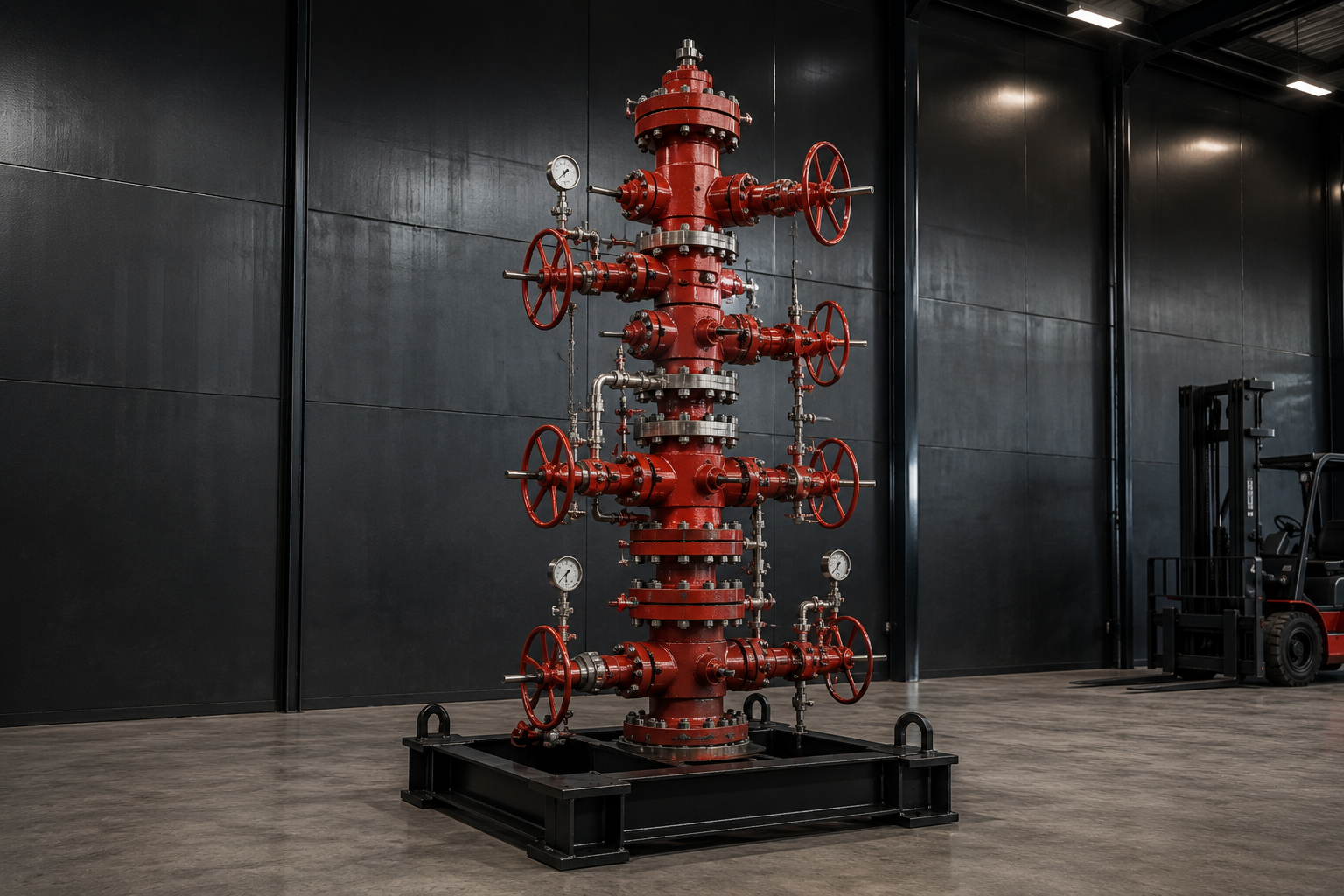

Flowback Operations

Flowback equipment and personnel scoped specifically for post-frac well cleanup.

  • ScopeFrac flowback only
  • Not IncludedProduction-side flowback · Sand handling
  • CoveragePermian · Bakken · Rockies
Flowback Operations
